10. Class Array 1 (가로)

클라스를 사용해 원을 가로로 6개 만든다.

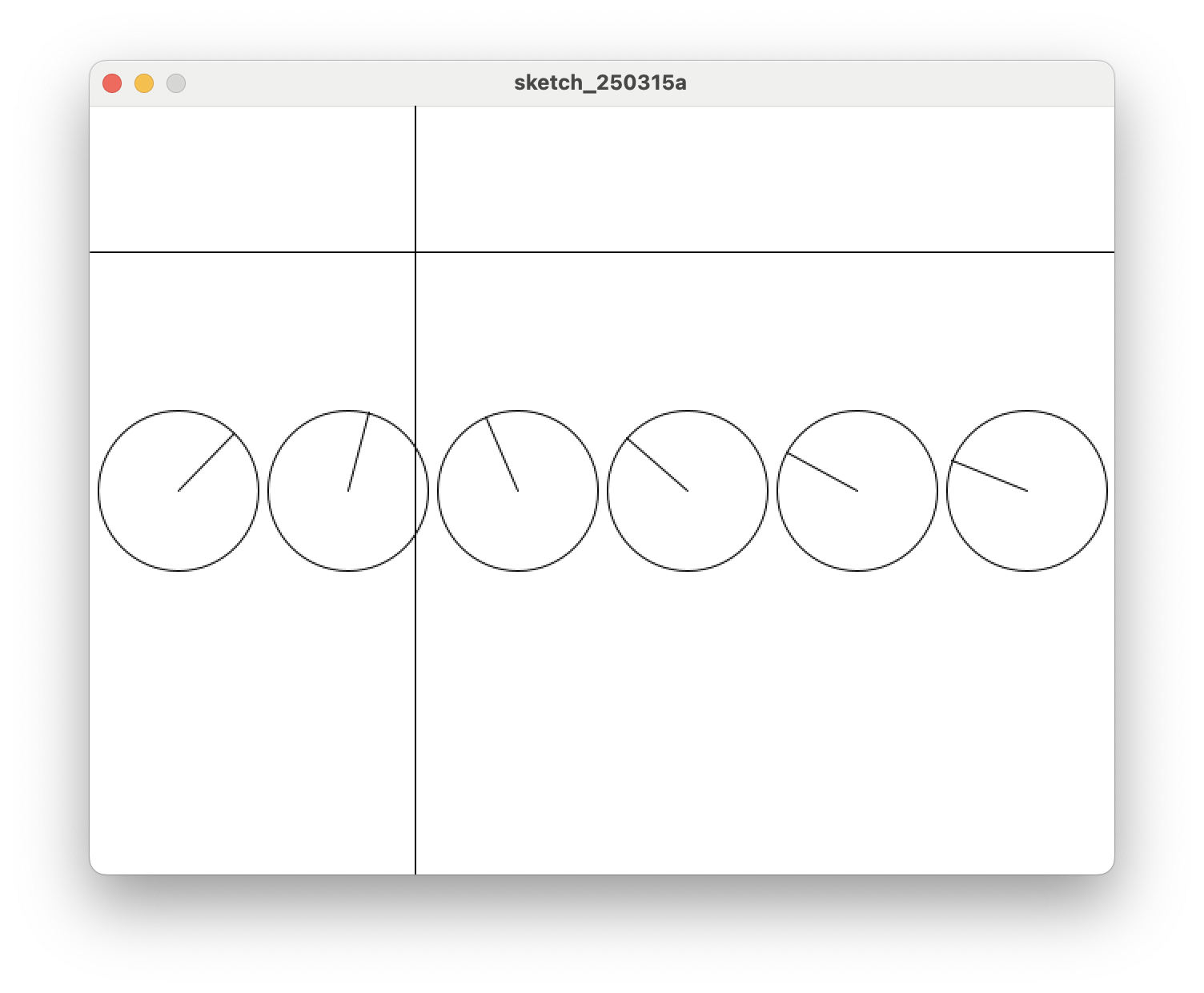

실행한 모습

코드 보기

proc-010.pde
int xCnt = 6;       // 가로 방향 갯수
int diam = 100;     // 원의 지름

// CircleArrow 클라스의 객체를 여러개 보관할 변수 배열
CircleArrow[] ca = new CircleArrow[xCnt];

void setup() {
    size(640, 480);

    // 가로축 크기를 원의 갯수로 나눔
    float xDist = width / xCnt;
    // 가로 첫번째 원과 마지막 원 사이 거리
    float xLen = xDist * (xCnt -1);
    // 첫번째 원의 가로 위치
    float xStart = (width / 2) - (xLen / 2);

    // 객체를 생성한다.
    for(int i=0; i < xCnt; i++) {
        // 가로축 시작점(xStart)으로 부터 xDist 간격으로 배치하여, 세로축의 중간에,
        // diam 크기의 원을 설정한다.
        ca[i] = new CircleArrow(xStart + (i * xDist), height / 2, diam);
    }
}

void draw() {
    background(255);

    for(int i=0; i < xCnt; i++) {
        ca[i].show(mouseX, mouseY);
    }

    line(0, mouseY, width, mouseY);
    line(mouseX, 0, mouseX, height);
}
CircleArrow.pde
class CircleArrow {
    float x;     // 원의 x 좌표
    float y;     // 원의 y 좌표
    float r;     // 원의 반지름
    float tx;    // 마우스 방향 원 위의 점 x 좌표, target x
    float ty;    // 마우스 방향 원 위의 점 y 좌표, target y
    float ta;    // 원의 원점에서 마우스 방향 각도, target angle

    // 클라스 변수를 생성하고 초기화 한다.
    CircleArrow(float posX, float posY, float diameter) {
        x = posX;
        y = posY;
        r = diameter / 2;
        tx = 0;
        ty = 0;
        ta = 0;
    }

    void show(float targetX, float targetY) {
        ta = atan2(targetY - y, targetX - x);
        tx = x + cos(ta) * r;
        ty = y + sin(ta) * r;
        circle(x, y, r * 2);
        line(x, y, tx, ty);
    }
}
  • 메인코드 Line 9 에서 객체를 배열로 저장하기 위해 객체 배열을 지정한다.
  • 메인코드 Line 14-26 에서 객체 배열을 초기화 한다.
  • draw() 부분은 매우 심플하다.
